The terminology surrounding threading tools often confuses even experienced engineers. Tool names vary wildly by region, such as the subtle differences between US and UK standard naming conventions. They also change based on the application, dividing basic manual tools from high-speed CNC operations. This confusion creates tangible problems on the shop floor. Selecting the wrong tooling nomenclature when ordering does not just cause procurement delays. It frequently leads to poor thread finishes, scrapped parts, and expensive tool breakage mid-cycle. We designed this guide to demystify threading terminology once and for all. We will bridge the gap between basic hand tools and high-performance machine taps. By the end, you will gain an evidence-based framework for evaluating thread-cutting tools and selecting reliable vendors.
Screw taps are broadly categorized by their operational method (Hand Taps vs. Power/Machine Taps) and their chamfer styles (Taper, Plug, Bottoming).
Terminology varies by region: A "Plug Tap" in the US is often called a "Second Tap" in the UK, while an American "Bottoming Tap" is a British "Plug Tap."
Maximizing tool life and ROI requires matching Pitch Diameter Limits (H/D limits) and specialized coatings (e.g., TiN, Black Oxide) to the specific workpiece material.
Partnering with a reliable screw tap manufacturer is critical for sourcing machine-grade tools that withstand high-RPM CNC environments without catastrophic failure.
To choose the right tool, you must first define your operational category. Industrial threading tools divide strictly into hand-operated models and machine-driven models. Each category serves a precise mechanical purpose. Understanding these definitions helps you select the correct Screw Tap for your production run.
Machinists typically use hand taps in sets of three. These tools feature straight flutes. They require manual reverse motions to break chips. The primary difference between them is the length of their chamfer.
Taper Tap: This tool features a 7–10 thread chamfer. It distributes cutting forces across multiple teeth. You use it for starting threads in difficult materials. The long chamfer provides low initial cutting resistance.
Plug Tap: This tool features a 3–5 thread chamfer. It follows the taper tap. Operators use it to deepen threads in through-holes.
Bottoming Tap: This tool features a 1–2 thread chamfer. You use it exclusively to cut threads to the very bottom of a blind hole. Never use it to start a new thread.
Machine taps operate at high speeds in automated environments. They handle continuous chip evacuation without manual reversing. You must never confuse these with basic hardware-store tools.
Spiral Point Taps (Gun Taps): The cutting edges feature an angular geometry. This design pushes chips forward ahead of the tool. They represent the most cost-effective machine tap for through-holes. However, they are highly destructive if used in blind holes. The chips will pack the bottom and snap the tool.
Spiral Flute Taps: These feature helical grooves similar to a drill bit. The geometry pulls chips up and out of the hole. They are the standard requirement for blind holes. You should also use them for parts with interrupted or cross holes.
Thread-Forming Taps (Roll Taps): These tools operate via cold-extrusion rather than cutting. They produce zero chips. The process displaces metal to yield high-strength threads. They remain highly viable for materials up to 36 HRC.
Procurement teams must evaluate tooling based on Total Cost of Ownership (TCO). Focusing only on the initial purchase price ignores hidden costs. You must analyze tool grades, pitch limits, and surface treatments.
You should avoid entry-level or hardware-store taps for production runs. These low-tier tools have zero tolerance for axial misalignment. They dull quickly and break easily under stress. Instead, always specify "Machine-Grade" taps. Manufacturers engineer these for high-RPM stability. They deliver extended tool life and strict dimensional accuracy.
Engineers classify pitch diameters using an alphanumeric system. For imperial tools under one inch, the system uses "H" limits. For metric tools, it uses "D" limits.
The rule relies on 0.0005-inch increments. You calculate the pitch diameter by adding these increments to the basic basic thread size. For example:
H1 = Basic Pitch Diameter + 0.0005"
H2 = Basic Pitch Diameter + 0.0010"
H3 = Basic Pitch Diameter + 0.0015"
TCO Driver: Always select a tap with the highest H-limit that still satisfies your required class of fit. For instance, a Class 2B fit allows a larger H-limit than a Class 3B fit. Selecting the larger limit maximizes the tool's wear life. The tool can wear down longer before it falls out of tolerance.
Bare high-speed steel (HSS) degrades quickly in harsh environments. You must match specific coatings to your workpiece material.
Black Oxide: This porous surface treatment retains cutting fluid. It prevents cold welding and galling. It works exceptionally well in carbon steels.
TiCN & AlCrN: These advanced coatings provide exceptional hardness. They also offer extreme heat resistance. Specify them for abrasive materials and high-speed CNC applications.
Uncoated/Bright Finish: You often prefer uncoated tools for aluminum and non-ferrous materials. Coatings can cause edge build-up in soft metals. A bright, polished finish prevents material from sticking to the flutes.
A high-quality tool cannot fix poor preparation. Operational prerequisites determine whether a selected tool succeeds or fails on the shop floor. You must master pre-drilled hole dimensions and lubrication.

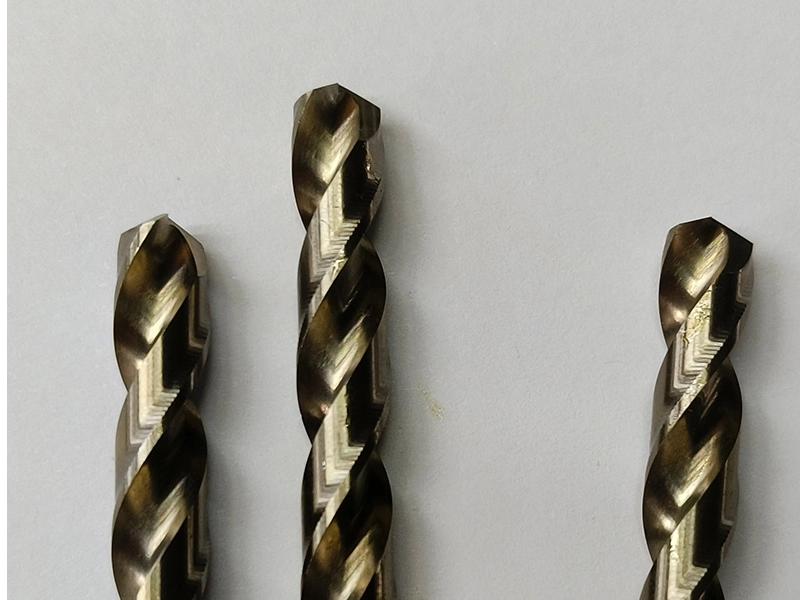

Many beginners struggle with sizing pre-drilled holes. Think of it this way: taps cut the major diameter of the thread. Therefore, the drill must cut the minor diameter. If the hole is too small, the tool binds and snaps. If the hole is too large, the threads lack holding strength.
You can use a standard calculation for metric threads: Drill Size = Nominal Diameter - Thread Pitch.
For example, if you need an M12 x 1.25 thread, you subtract 1.25 from 12. The required drill bit size is exactly 10.75mm. This simple rule prevents constant chart lookups.
Cutting forces generate immense heat. Wrong lubrication leads to torn threads and ruined parts. Different materials demand entirely different fluid strategies.
Workpiece Material | Recommended Lubrication Strategy | Operational Reasoning |
|---|---|---|
Carbon Steel | Petroleum-based or synthetic cutting fluids | Provides high lubricity to reduce friction and prevent galling during heavy cuts. |
Aluminum | Kerosene or mineral oil blends | Prevents soft material from tearing and welding to the tool's cutting edges. |
Cast Iron | Dry tapping with low-speed air blasts | Fluids mix with cast iron dust to form an abrasive paste. Air clears chips safely. |
Even perfectly calculated operations encounter failures. You need an evidence-based diagnostic framework to troubleshoot problems. Identifying the exact failure mode establishes deep technical authority on your shop floor.
Many tools snap when the operator reverses the spindle. This usually happens because chips pack tightly into the flutes. When you reverse, the chips jam against the newly cut threads. You can mitigate this during manual operations by utilizing the "break chip movement." This involves frequent reversing every half-turn to snap the chip. In automated settings, you should switch to spiral flute machine taps. They evacuate chips upward, preventing reversal jams.
This represents a critical risk when using Thread-Forming taps in blind holes. Cold extrusion requires lubrication. However, if the hole lacks fluid escape grooves, the cutting oil cannot exit. The trapped fluid acts as a solid plug at the bottom. This creates immense back pressure. The hydraulic lock will instantly snap the tool. You must ensure proper fluid volume control or use tools with oil grooves.
Rough or oversized threads indicate a geometry problem. The tool is tearing the metal rather than cutting it. You should diagnose this by checking three areas. First, verify if the tool has an insufficient hook angle for the material. Second, inspect the cutting edges for dullness under magnification. Finally, confirm you are using the correct grade of lubrication for the specific metal.
Your procurement strategy directly impacts your manufacturing efficiency. You need a vendor who understands application engineering. Evaluating suppliers requires looking beyond catalog pricing. You must verify their technical capabilities.
Evaluate what the supplier keeps in stock. Do they offer exact H-limit variations off-the-shelf? Many generic distributors only carry general-purpose Class 2B standard sizes. A specialized partner maintains a deep inventory of specific pitch limits. They also offer rapid turnaround for custom dimensions.
A credible Screw Tap manufacturer acts as an extension of your engineering team. They should assist you in calculating proper speeds and feeds. They will review your exact CNC setup. Based on that data, they should recommend specific chamfer and coating matrices to optimize your cycle times.
Tool life depends entirely on metallurgical consistency. Look for manufacturers utilizing high-grade High-Speed Steel (HSS) or Solid Carbide. The supplier must prove their tools can reliably maintain Rockwell 60+ hardness at high operating temperatures. Inferior steel loses its temper at 500°C, leading to immediate edge failure.
Identifying what these cutting tools are called is just your baseline. We have explored the critical differences between manual and machine-driven operations. The real ROI comes from specifying the exact flute geometry, H-limit, and surface coating for your specific application. You must abandon generic hardware-store tools for precision machining. Instead, evaluate your shop's specific needs regarding hole preparation, lubrication, and chip evacuation.
We encourage you to audit your current tool breakage rates today. Document your most frequent failure modes. Then, consult with a specialized tooling manufacturer. Upgrading from generic hand taps to application-specific machine tooling will dramatically reduce your scrap rates and boost your productivity.
A: A machine tap is designed for automated CNC power tapping. It handles high speeds and continuous chip evacuation. A "machine screw tap" simply refers to the size standard (e.g., matching #8-32 machine screws). It features a standard chamfer and can still be driven manually with a T-handle wrench.
A: Concrete is not tapped. Instead of using a screw tap, applications in concrete require pre-drilling. Once drilled, you must use specialized self-tapping masonry screws. These screws cut their own mating threads directly into the abrasive concrete structure as you drive them in.
A: Regional terminology diverges mainly on the middle and finishing tools. In the US, the standard sequence is Taper, Plug, Bottoming. In the UK, the identical sequence is called Taper, Second, Plug. Relying on specific chamfer thread counts (e.g., "3–5 thread chamfer") avoids international ordering errors.
