Tooling selection directly impacts your cost-per-part and spindle uptime in modern machining environments. Machine shops constantly look for ways to boost efficiency without sacrificing precision. Stopping a machine frequently to index a worn edge kills productivity. When choosing between CNMG and WNMG geometries, many machinists see two very similar tools. Both share an 80° nose angle making them appear functionally identical at a glance. However, their distinct shapes dictate wildly different economic and operational outcomes on the shop floor.
This guide explores a technical and commercial evaluation framework for selecting the right indexable turning insert based on part geometry, material removal rates, and budget. You will learn how to match specific tool geometry to your exact production demands. We break down everything from edge count economics to profiling clearance realities. Understanding these subtle differences helps you optimize your spindle hours and reduce unnecessary tooling expenditures.
Edge Count & Economy: WNMG turning inserts offer 6 usable cutting edges compared to CNMG’s 4, drastically lowering the cost per edge for high-volume roughing.
Clearance & Profiling: CNMG turning inserts provide superior clearance for complex profiling, facing, and undercutting where WNMG inserts might cause tool interference.
Toolholder Dependency: Switching between the two requires different toolholders (e.g., MCLNR vs. MWLNR); ROI calculations must factor in the holder replacement cost.
Primary Application: Choose WNMG for uninterrupted heavy roughing and straight turning; choose CNMG for versatile, multi-directional profiling and finishing.

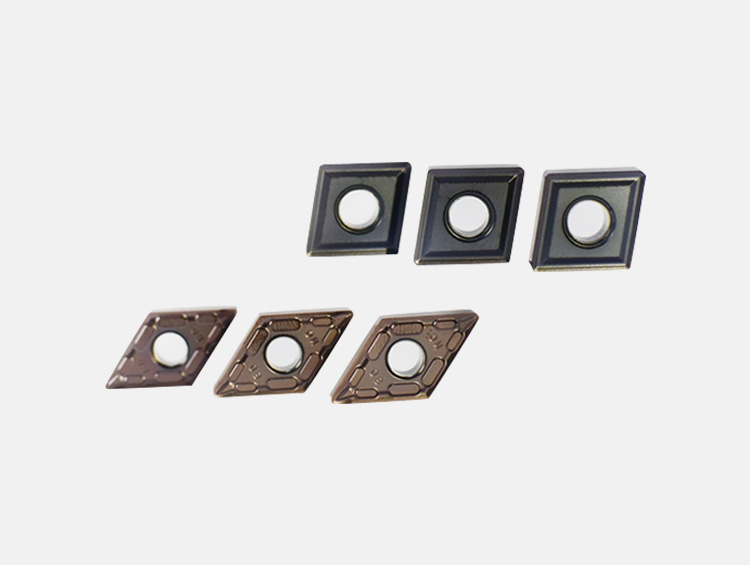

The internationally recognized ISO nomenclature serves as the foundation of proper tooling selection. According to ISO 1832 standards, the first letter defines the base shape. The "C" designates a rhombic or diamond shape. The "W" indicates a trigon shape, closely resembling a hexagon or a peach. These letters represent the physical perimeter of the carbide blank. The rest of the designation dictates tolerances, seating type, and chipbreaker features. Knowing these foundational shapes helps machinists predict cutting behavior accurately.
Edge utilization clearly separates these two shapes from an economic perspective. A standard double-sided CNMG turning insert provides four cutting edges. You get two usable corners on the top face and two on the bottom. Conversely, a trigon-shaped tool offers six total cutting edges. You gain three usable corners per side. This simple geometric difference fundamentally changes how often you must purchase replacement boxes for high-volume runs.
Both shapes feature an identical 80° corner angle. This specific angle provides excellent edge strength suitable for highly demanding operations. The 80° corner handles significant cutting forces effectively. It resists catastrophic chipping much better than sharper geometries like a 35° or 55° corner. Machinists rely on this angle to absorb the shock of interrupted cuts during heavy material removal.
Common Mistake: We must avoid exaggerated claims about inherent strength. One shape is not automatically stronger than the other just by design. Actual edge durability depends heavily on your specific carbide grade, the chosen chipbreaker, and your programmed depth of cut. An 80° corner merely provides the geometric foundation. The material properties, thermal coatings, and edge preparation ultimately determine your overall tool life.
The rhombic shape stands out as the profiling standard across the manufacturing industry. Its distinct diamond outline provides ample clearance directly behind the cutting edge. This specific clearance allows the tool body to navigate complex external profiles seamlessly. You can easily perform facing operations and turn right up to a 90° shoulder. The steep relief angle away from the cutting zone prevents the holder from rubbing against the spinning workpiece. Machinists choose this option to handle deep undercuts and intricate contours without experiencing tool interference.
On the other hand, the trigon geometry serves as the undisputed roughing workhorse. The broader physical base distributes cutting forces efficiently across the seating pocket. A WNMG turning insert excels at aggressive longitudinal turning and continuous facing operations. You can push for extremely high material removal rates where deep profiling clearance is unnecessary. The wider shape absorbs heavy radial loads effortlessly during long, uninterrupted passes.
We must also address risk mitigation, specifically concerning chatter and vibration. The trigon geometry creates a slightly larger tool-to-workpiece contact area. This increased contact can sometimes induce unwanted vibrations. You need adequate machine rigidity during heavy roughing to counteract these forces. Lighter-duty lathes or worn spindles might struggle to drive a trigon tool through tough alloys at elevated feed rates. Proper workholding is mandatory.
Machining Feature | CNMG (Rhombic) | WNMG (Trigon) |
|---|---|---|
Primary Application | Complex profiling, finishing, multi-directional turning | Heavy roughing, straight turning, continuous facing |
Profiling Clearance | Excellent (avoids toolbody interference) | Limited (prone to rubbing on deep undercuts) |
Radial Force Absorption | Moderate to High | Very High (due to broad base support) |
Machine Rigidity Need | Standard | High (to prevent chatter from larger contact patch) |
Modern shop managers frame tooling decisions around "cost per cutting edge" rather than "cost per insert." Simply looking at the upfront price of a ten-pack box is a flawed metric. You must calculate the actual machining value extracted from every usable corner. Focusing purely on the initial purchase price blinds you to long-term operational savings. Evaluating edge utilization reveals the true economic impact on your production floor.
The financial advantage of the trigon shape becomes immediately obvious during this analysis. A 6-edge trigon tool typically yields a 33% reduction in tooling costs for continuous roughing operations. Comparing it directly to a 4-edge rhombic tool highlights this reality. The math heavily favors the six available edges. This cost reduction accumulates rapidly during high-volume production runs. Every extra edge means less machine downtime and fewer purchases over a fiscal quarter.
However, transparently addressing the barrier to entry is crucial for accurate ROI calculations. Switching between these geometries involves hidden switchover costs. A machine shop must invest in entirely new toolholders to make this transition. You cannot seat a trigon shape safely in a rhombic pocket. The seating mechanisms and clamp angles differ completely.
You can use a simple breakeven logic formula to justify the switchover investment. Take the new toolholder cost and divide it by the measured savings per edge. This calculation reveals the exact number of edges needed to recoup your initial cash outlay.
Cost Variable | Example Value |
|---|---|
New MWLNR Toolholder Cost | $120.00 |
Cost per CNMG Edge | $2.50 |
Cost per WNMG Edge | $1.65 |
Savings per Edge | $0.85 |
Breakeven Point | 141 Edges (Approx. 24 Inserts) |
What to watch out for: We also need to acknowledge the reality of scrap and edge failure. If an inexperienced operator catastrophically crashes a trigon tool, the damage often spreads. You might lose three edges simultaneously if the carbide fractures deeply into the seating face. This specific scenario slightly reduces the theoretical ROI advantage. Proper setup, rigorous programming, and optimized feed rates remain essential to realize your expected cost savings.
Toolholder compatibility requires strict adherence to manufacturer specifications. You must use specific clamping systems designed exclusively for each base shape. Rhombic shapes typically utilize rigid lever-lock systems like an MCLNR holder. Trigon shapes require an MWLNR holder configuration. The distinct pocket designs support the unique radial and axial forces generated by each geometry. Proper seating inside the pocket is absolutely non-negotiable for predictable tool life. A poorly seated tool will micro-fracture within minutes of cutting.
Chip control and chipbreaker selection are just as critical as your chosen base shape. The 80° angle behaves quite differently depending on the workpiece material. Cutting mild steel feels vastly different from cutting 304 stainless steel or abrasive cast iron. Selecting the correct chipbreaker geometry dictates your operational success. A modern CNC turning insert needs a chipbreaker perfectly tailored to your feed rate and depth of cut. If you ignore the chipbreaker design, even the strongest tool shape will suffer from long, stringy chips tangling around the chuck.
Setup rigidity addresses real-world machinist concerns directly. We must look at actual shop floor realities before upgrading our roughing tools. Ensure your lathe provides sufficient horsepower to handle aggressive feed rates. Check your workpiece clamping stability before initiating a heavy cycle. The broader contact area of a trigon tool demands exceptional workholding rigidity. Weak chuck jaws or extended part overhangs will instantly introduce chatter. You must secure the part firmly to leverage the high material removal rates these tools are built to achieve. Watch your spindle load meter closely during the first pass to monitor machine strain.
Making the final choice requires evaluating your specific shop floor conditions objectively. No single tool solves every manufacturing challenge. Use this evaluation matrix to guide your purchasing decision effectively.
Choose a CNMG turning insert if: You run mixed-batch production requiring frequent changeovers. You require complex profiling, deep undercutting, or intricate facing. You need maximum versatility without changing toolholders mid-run.
Choose a WNMG turning insert if: You are optimizing high-volume production lines. You primarily perform straight rough turning on rigid machines. You want to aggressively drive down your cost-per-part metrics through higher edge utilization.
We highly recommend implementing a strict testing protocol before finalizing bulk purchases. Relying on catalog specifications alone rarely tells the whole story. Shop environments vary wildly regarding coolant pressure, machine age, and operator skill.
Isolate a stable, repeating job on your CNC lathe to serve as the baseline.
Run exactly 100 parts using your standard 4-edge rhombic tool.
Swap the toolholder assembly and run another 100 parts using the 6-edge trigon tool.
Measure actual tool wear on both edges using a microscope or optical comparator.
Verify dimensional stability and surface finish across both sample batches.
Calculate the exact cost per acceptable part based on your observed wear data.
Neither tool geometry is universally superior across all machining applications. The trigon shape wins decisively on pure economic efficiency for straight turning operations. It lowers your edge costs significantly during heavy, continuous material removal. It provides a superior return on investment for high-volume production facilities. Meanwhile, the rhombic geometry remains the undisputed champion of versatile profiling. It easily navigates complex shapes, tight shoulders, and demanding undercuts without clearance issues.
We encourage buyers to audit their current scrap rates thoroughly. Evaluate your primary toolpaths to see where deep profiling clearance is genuinely needed. Consider the rigidity of your older machine tools before transitioning to aggressive trigon roughers. Finally, consult directly with your tooling provider. They can help you match the specific carbide grade and chipbreaker to your exact material application. A carefully matched turning insert always outperforms a generic, catalog-default choice.
A: No. While WNMG is more cost-effective for straight turning, its geometry limits its ability to clear complex profiles and deep undercuts that a CNMG can easily access.
A: No. Their seating pockets are entirely different. You must purchase specific holders for each (e.g., C-style vs. W-style holders).
A: TNMG (Triangle) has 6 edges like WNMG but features a 60° angle. It offers better clearance for profiling than WNMG but has a weaker cutting edge than both the 80° CNMG and WNMG, making it less ideal for heavy, interrupted roughing.
