Poor tooling choices quietly drain manufacturing budgets every single day. Choosing the wrong cutting edge leads to scrapped parts, excessive machine downtime, and inflated cost-per-part metrics. Many machinists still rely on guesswork or outdated habits when replacing tools. This unscientific approach ignores the specific demands of modern alloys and high-speed equipment. We must move beyond trial-and-error. You need a systematic, data-backed selection process for your next Carbide Turning Insert. The right tool always represents a calculated compromise. You must balance wear resistance and toughness based on the specific job. In this guide, you will learn how to match geometry, grades, and chipbreakers to your exact application. We will break down the precise steps to optimize your machining process and maximize tool life.
Insert selection follows a strict hierarchy: Workpiece Material > Operation Type > Insert Geometry > Grade & Coating.
The ISO identification system provides a standardized, brand-agnostic framework for evaluating any CNC turning insert.
Maximizing ROI requires calculating tool life and machining time, not just the upfront unit cost of the insert.
Successful implementation requires balancing feed rates and depths of cut with the appropriate chipbreaker geometry.
Before selecting any tool, you must define the job requirements accurately. Every shop floor has different goals. Identifying your core objective narrows down the tooling options immediately. We cannot optimize a process until we know the target outcome.
Identify the primary production bottleneck. Ask yourself what you need to improve most. Are you aiming for higher metal removal rates (MRR)? Do you need a superior surface finish? Perhaps you want to maximize tool life in unmanned operations. Your goal dictates your choice entirely. A tool built for aggressive MRR will not deliver a mirror-like finish. High MRR tools require tough substrates. Finishing tools require sharp, delicate edges.
Assess machine capabilities before ordering tools. You must document spindle power, maximum RPM, and overall machine rigidity. High-performance tooling requires rigid setups. A loose setup causes chatter and rapid edge chipping. If your lathe lacks horsepower, you cannot push a massive, negative-rake tool through hardened steel. Match the tool aggressiveness to your machine's physical limits.
Categorize the cut by looking at the part profile. Define whether the operation involves continuous cutting, light interruptions, or heavy interruptions. Continuous cutting generates immense heat but maintains stable cutting forces. Light interruptions cause minor shock to the tool edge. Heavy interruptions, like turning hex stock or rough castings, demand extreme tool toughness. You must choose a turning insert capable of surviving these specific impact levels.
Geometry dictates tool strength and part accessibility. You must choose the right shape to prevent catastrophic failure. A weak shape in a heavy roughing pass will shatter instantly. Conversely, a bulky shape cannot profile intricate part details.
The geometric shape determines the nose angle. Larger nose angles offer more structural strength. Smaller angles allow better access into tight profiles. We categorize these shapes into three main groups.
Strongest/Highest Feed: Round (R) and Square (S) profiles excel at heavy roughing. They absorb massive cutting forces efficiently.

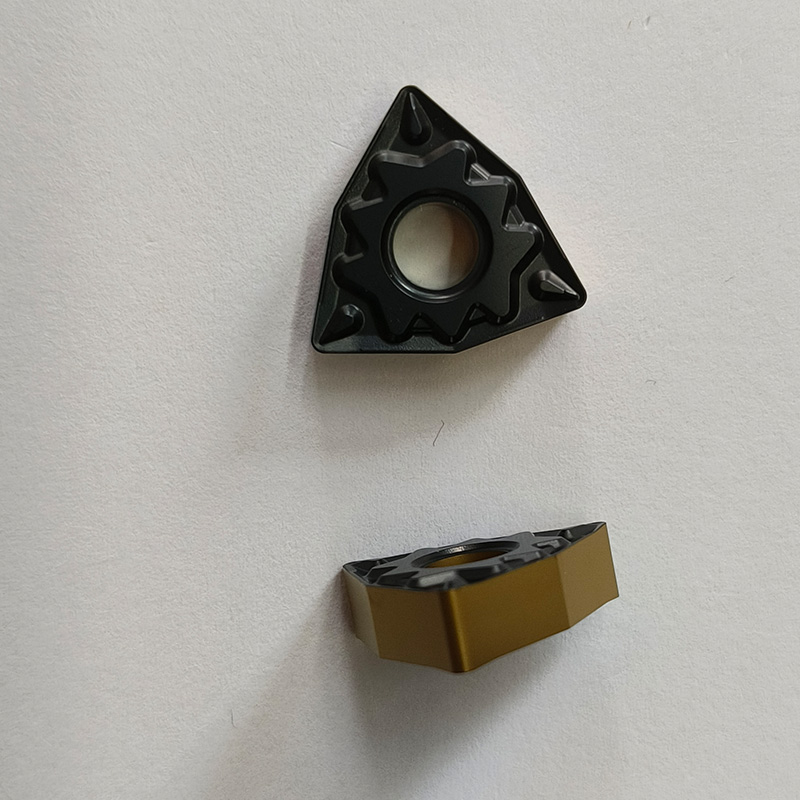

Versatile/Profiling: 80-degree Diamond (C) and Trigon (W) shapes offer a great balance. You can use them for general turning and facing operations.

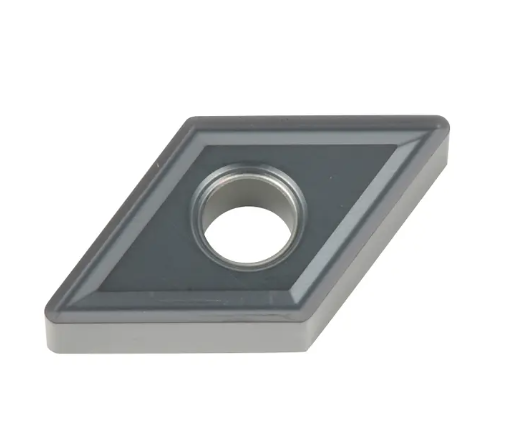

High Accessibility/Finishing: 55-degree (D) and 35-degree (V) Diamond shapes reach into deep undercuts easily. However, their sharp points break quickly under heavy loads.
Insert Shape Comparison Chart
Shape Code | Included Angle | Primary Use Case | Relative Strength |
|---|---|---|---|
R (Round) | N/A | Heavy roughing, profiling | Maximum |
S (Square) | 90 Degrees | General roughing, facing | Very High |
W (Trigon) | 80 Degrees | Semi-roughing, versatile turning | High |
V (Diamond) | 35 Degrees | Fine finishing, deep profiling | Low |
You must decide between negative and positive geometries. Negative inserts are double-sided. They offer twice the cutting edges per tool. They are inherently stronger but require higher machine horsepower. They push material away aggressively. Positive inserts are single-sided. They feature a sharper edge and generate lower cutting forces. They excel in finishing passes or on less rigid machines.
Always select the largest size fitting your toolholder. It must also handle your required depth of cut (DOC). Larger tools offer significantly more thermal mass. They absorb heat better and provide maximum stability during aggressive cuts. Check your holder dimensions carefully to ensure a perfect fit.
Workpiece material dictates the chemical makeup of your tool. You cannot use a generic grade for every metal. Modern machining requires highly specialized metallurgy to succeed.
The ISO classification system categorizes metals into six standard groups: P, M, K, N, S, and H. Aligning your tool to the correct group prevents rapid wear. You must match the substrate and coating to the specific metal you plan to cut.
Steel machining generates high temperatures and constant friction. When selecting a turning insert for steel, evaluate CVD (Chemical Vapor Deposition) coatings first. CVD layers provide excellent thermal protection. They handle high-speed continuous turning effortlessly. You must also address crater wear. Carbon and alloy steels chemically degrade the top tool face. Thick aluminum oxide coatings resist this chemical wear perfectly.
These materials act differently than carbon steel. They stick to the tool and work-harden quickly. You should prioritize PVD (Physical Vapor Deposition) coatings here. PVD processes maintain sharper cutting edges. A sharp edge slices cleanly. This clean slicing action prevents work hardening and built-up edge (BUE).
Every tool relies on a tungsten carbide core. You must understand the inverse relationship between hardness and toughness. Higher hardness provides better wear resistance. However, it also means lower cobalt content. Lower cobalt reduces impact resistance. If you face interrupted cuts, you need a tougher substrate. If you turn smooth shafts, you need a harder substrate. Balancing these two properties determines your overall success.
Chips tell the story of your machining process. You must control them to protect the workpiece and the operator. The chipbreaker geometry curls and snaps the metal strip into small, manageable pieces.
Roughing Operations: High depths of cut and heavy feed rates generate massive chips. You need deep, open chipbreaker geometries here. These open designs evacuate large volumes of material quickly. They prevent dangerous jamming in the cutting zone.
Medium Machining: General-purpose work involves varied depths of cut. Medium chipbreakers offer a balanced groove. They handle moderate feeds reliably across many materials.
Finishing Operations: Finishing requires shallow depths and low feed rates. These parameters produce thin, delicate shavings. You must use tight chipbreaker grooves. Tight grooves curl and break thin chips efficiently. This action ensures critical surface finish tolerances remain intact.
A mismatch between chipbreaker design and feed rate causes severe problems. If you run a roughing chipbreaker at finishing feed rates, the chip will not curl. It becomes a continuous "stringy" wire. This wire wraps tightly around the chuck or toolholder. It ruins the surface finish and creates a severe safety hazard. Always match your carbide turning insert geometry precisely to your actual feed rate.
Even perfect planning cannot prevent every failure. You must learn to read the tool after it runs. Identifying the wear pattern helps you adjust the process quickly and accurately.
A broken edge indicates a severe lack of toughness. It often stems from excessive interrupted cutting or machine vibration. Heavy scale on raw material also causes random breakages.
Solution: Switch to a tougher carbide grade immediately. You can also try a stronger edge preparation. Using a honed or heavily chamfered edge adds massive strength to the cutting point.
Flank wear happens naturally over time. However, rapid wear indicates excessive cutting speed. It can also mean insufficient wear resistance in the base substrate.
Solution: Use a harder grade or a thicker CVD coating. Alternatively, simply reduce your surface footage (SFM). Every CNC turning insert has an optimal speed limit. Pushing past this limit burns the edge away.
Look for tiny cracks running perpendicular to the main cutting edge. Temperature fluctuations cause this specific damage. Inconsistent coolant application is usually the culprit. The tool gets incredibly hot, then coolant shocks it cold repeatedly.
Solution: Turn off the coolant entirely during interrupted milling or turning. Let the tool air-cool naturally. If you must use coolant, ensure high-pressure, pinpoint delivery directly into the cutting zone.
Treat your tooling suppliers as strategic partners. The cheapest tool upfront rarely delivers the lowest manufacturing cost. You must look at the bigger picture to stay profitable.
Favor ISO-standard shapes over proprietary designs where possible. Proprietary tools lock you into a single vendor. ISO standards maintain crucial supply chain flexibility. You can swap brands easily if lead times become an issue. Standardization keeps your options open.
You need a reliable framework for measuring actual cost. Use this simple formula: (Insert Cost / Number of Edges) + (Machining Time Cost per Part). A slightly more expensive tool might run twice as fast. Saving precious machining time lowers your overall CPP drastically. Never judge a tool solely by its initial purchase price.
Managing too many grades creates massive confusion on the floor. Look for versatile grades spanning multiple material groups. A hybrid P/M grade works wonders for low-volume, high-mix shops. You reduce inventory overhead without sacrificing too much performance.
Never switch your entire production line blindly. Request test samples from your shortlisted vendors. Establish a firm baseline using your current tooling first. Record the cycle time and tool life accurately. Then, run controlled A/B cutting trials. Let hard data dictate your final purchasing decision.
Optimizing your turning process requires absolute discipline. We can summarize this structured approach easily. Always start by identifying the workpiece material. Then, let the part print dictate your geometry and shape. Finally, refine the specific grade and chipbreaker through controlled testing on your machine.
Take these actionable next steps today:
Document your current baseline metrics before changing any tools.
Audit your tooling crib to identify overlapping or obsolete grades.
Run an A/B test using the CPP formula to prove actual savings.
Do not default to the cheapest unit price. You must optimize for process reliability and predictable tool life. A stable, predictable cut allows your operators to walk away and run multiple machines simultaneously. This predictability drives real profitability.
A: Turning inserts handle continuous cutting against a rotating workpiece. They feature specific geometries and chipbreakers designed for constant heat and unbroken chip flow. Milling inserts handle interrupted cutting as the tool rotates into the material. They use tougher substrates and thicker edge preparations to survive constant entry and exit impacts.
A: Tool life is measured in time-in-cut or total parts produced. The industry standard benchmarks optimal tool life around 15 to 20 minutes of continuous cutting time. Running tools at speeds yielding this specific lifespan usually provides the best balance between metal removal rates and tooling costs.
A: No. ISO P inserts designed for steel feature honed edges and thick coatings. These characteristics perform terribly on ISO N materials like aluminum. The aluminum melts and sticks, causing built-up edge (BUE). Aluminum requires uncoated, highly polished positive inserts to slice cleanly and prevent material adhesion.
A: The alphanumeric string (e.g., CNMG 432) identifies exact specifications. It defines the insert shape (C), clearance angle (N), tolerance (M), and hole/clamping type (G). The numbers dictate the physical size, thickness, and corner radius. This universal code allows you to cross-reference tools across different manufacturers easily.
