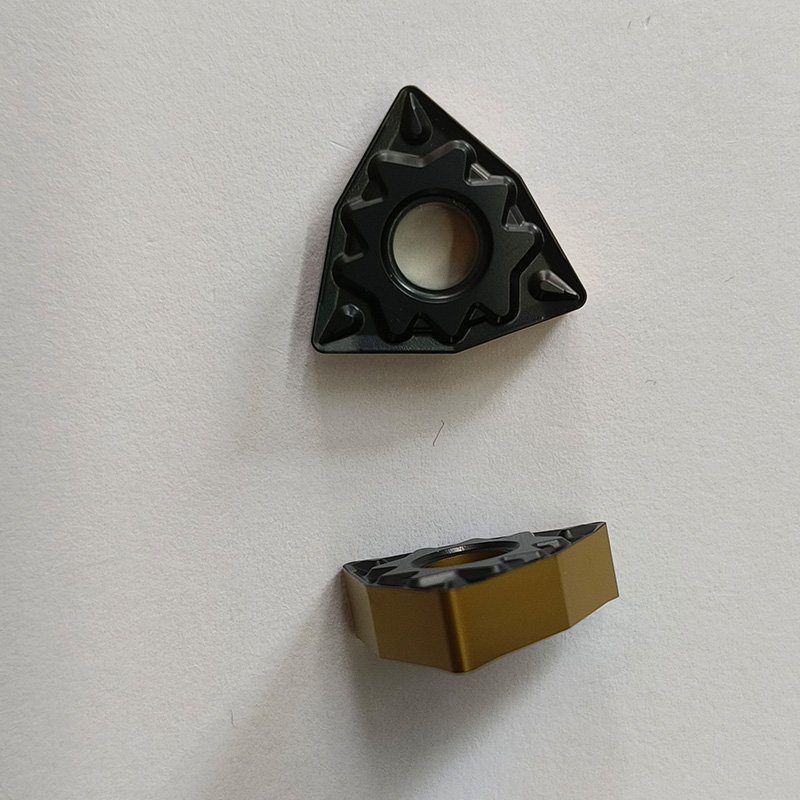

Tooling selection carries incredibly high stakes in modern manufacturing environments. Choosing the incorrect insert does more than just ruin your surface finishes. It actively drives up your production expenses through rapid tool wear. You will also face costly machine downtime and scrapped materials. You should never treat the tooling selection process as a guessing game. Instead, approach it as an objective, step-by-step elimination process. You must base your decisions on the workpiece material, machine rigidity, and specific operation type. We will introduce a standard evaluation framework to guide you. This method balances aggressive cutting efficiency against reliable and predictable tool life. In this article, you will learn how to define success criteria for your machining applications. We will cover how to evaluate insert geometries and select proper carbide grades. You will also understand how to match chipbreakers to specific operations. By the end, you will know exactly how to specify the optimal tooling.
Material dictates the baseline: Always start with the ISO material group (P, M, K, N, S, H) to determine the base grade and coating.
Geometry is a compromise: Insert shape dictates the fundamental trade-off between cutting edge strength and tool accessibility (profiling capability).
Application defines the chipbreaker: Roughing, medium machining, and finishing require distinct chipbreaker geometries to prevent chip entanglement.
Test before scaling: Always validate a new CNC turning insert with a controlled trial run to assess true wear patterns and cycle time impact before mass procurement.
Every successful machining process begins by defining clear operational goals. You cannot optimize a process unless you know your desired outcome.
You must differentiate between distinct manufacturing objectives. Sometimes you need to select tools for the maximum metal removal rate (MRR). High MRR focuses on aggressive speeds and feeds to minimize cycle times. Alternatively, you might want to maximize uninterrupted tool life. This approach suits lights-out manufacturing. Unmanned shifts require extreme reliability over sheer speed. A tool failing during a night shift ruins the entire production run.
You need to document your physical machining constraints before selecting any tool. First, evaluate your machine horsepower. Low-horsepower machines stall under heavy cutting loads. Next, analyze your setup rigidity. Long, slender workpieces vibrate easily. Slender parts require different cutting edges than thick, rigid billets. Finally, check your coolant capabilities. High-pressure coolant handles chip evacuation differently than standard flood coolant.
Clarify the exact nature of the machining operation early in your process. You need to know if the operation is external turning or internal boring. You also need to identify facing or complex profiling requirements. This step instantly eliminates incompatible insert geometries. For example, large, bulky inserts cannot fit into tight internal bores.
Workpiece material determines your initial tooling decisions. Different metals generate different types of heat and wear.
The machining industry uses a standardized ISO classification system. This system categorizes materials into six primary groups. You must match your insert grade and coating to these standardized groups. Manufacturers color-code these groups to simplify identification on packaging.
Steel represents the most common machining material. You need a specific turning insert for steel to achieve good results. Steel produces continuous chips during cutting. This generates high friction and intense crater wear on the tool face. You should focus on high crater wear resistance. The insert also requires sufficient toughness to handle continuous cutting pressures.
Stainless steel and heat-resistant superalloys (HRSA) pose unique challenges. These materials frequently suffer from work hardening. They also generate severe built-up edge (BUE). BUE occurs when workpiece material welds itself to the cutting edge. You must address these risks aggressively. Emphasize the need for very sharp cutting edges. You also need highly heat-resistant coatings to survive the extreme cutting zone temperatures.
Cast iron (ISO K) contains highly abrasive silicon carbide particles. You must highlight abrasive wear considerations when cutting this material. Hard, wear-resistant insert grades perform best here. Conversely, non-ferrous materials (ISO N) like aluminum behave differently. Aluminum tends to stick to cutting tools. You require highly polished, uncoated inserts to cut aluminum cleanly.
Insert geometry forces you to make calculated compromises. You cannot have maximum strength and maximum accessibility simultaneously.
We must explain the inverse relationship between the point angle and profiling accessibility. A larger point angle contains more carbide mass. This extra mass absorbs heat and resists fracturing. However, a wide angle cannot fit into tight corners. A narrow point angle easily maneuvers into complex contours. Unfortunately, this narrow tip breaks much easier under heavy loads.
You should select C, S, or W shapes for demanding applications. These shapes feature larger point angles, usually around 80 degrees. We detail why these larger point angles provide the highest cutting-edge strength. They offer immense thermal mass for aggressive cuts. They endure heavy interruptions without fracturing. You use these shapes to remove massive amounts of material quickly.
Complex parts require D (55 degrees) or V (35 degrees) shapes. We detail why these specific shapes are required for complex contours. They easily reach into tight undercuts and corners. However, they possess inherently weaker tips. You must reduce your feed rates when using these shapes. They excel in finishing operations where dimensional accuracy matters most.
Clearance angles significantly impact tool performance and cutting forces.
Negative inserts: These sit flat in the tool holder. They provide the best results for rigid setups and heavy roughing. They offer double-sided economy because they yield more cutting edges per insert.
Positive inserts: These feature built-in clearance angles. They represent a necessary choice for slender workpieces. You also need them for internal boring or low-horsepower machines. They significantly reduce cutting forces and minimize vibration.
Application Parameter | Negative Clearance Insert | Positive Clearance Insert |
|---|---|---|
Machine Rigidity | High rigidity required | Forgiving on flexible setups |
Cutting Forces | High radial cutting forces | Low radial cutting forces |
Cost Per Edge | Low (Double-sided usage) | Higher (Single-sided usage) |
Best For | Heavy roughing, hard metals | Finishing, boring, slender parts |
The insert grade determines how long the tool survives. You must balance the physical substrate against the protective coating.
You must explain the balance between hardness and toughness. Hardness provides excellent wear resistance against abrasive materials. Toughness provides shock resistance for interrupted cuts. You cannot maximize both properties simultaneously. A harder substrate becomes brittle and chips easily. A tougher substrate deforms under extreme heat. You must choose the substrate based on your operation's stability.
Manufacturers apply CVD coatings in thick layers. We position this as the standard for high-speed, high-temperature roughing. They provide excellent thermal barriers. You typically choose a CVD carbide turning insert for stable steel or cast iron applications. The thick coating withstands the continuous heat generated during long, uninterrupted cuts.
PVD coatings apply much thinner layers than CVD coatings. We position this as the solution for sharp cutting edges. The thin layer preserves the underlying edge sharpness. PVD coatings excel in finishing operations and interrupted cuts. They also perform exceptionally well on gummy materials like stainless steel and aerospace alloys.
Uncoated inserts fill a very specific operational niche. We must clarify their niche necessity for non-ferrous materials. Aluminum and titanium often react chemically with standard coatings. This reaction causes severe edge build-up. Uncoated, highly polished inserts prevent this chemical affinity. They slice cleanly through non-ferrous metals without material adhesion.
You must control the chips coming off the workpiece. Poor chip control ruins parts and endangers machine operators.
We frame chip evacuation as a critical safety and automation factor. Long, stringy chips wrap around the chuck and the workpiece. Operators call this dangerous phenomenon "bird-nesting." Bird-nesting scratches surface finishes and breaks tools. It completely ruins any chance of automated, unmanned production. Proper chip control breaks the metal into small, manageable pieces.
You must select a chipbreaker designed for your specific cutting parameters.
Roughing: You need open geometries with strong edges. Engineers design these for high Depth of Cut (DOC) and high feed rates. They handle massive chip volumes easily.
Medium: You use versatile geometries for varying DOC. These chipbreakers handle moderate feeds and speeds efficiently.
Finishing: You need tight chipbreakers designed to break thin chips. They function best at low DOC and extremely low feed rates.
Wiper inserts modify the standard nose radius geometry. We briefly mention wiper inserts for doubling feed rates while maintaining surface finish. A wiper edge smooths the material as it cuts. However, you must note the strict requirement for high machine rigidity. Wiper inserts increase radial cutting forces and can induce chatter on weak setups.
You must translate theoretical selection into practical application. This requires understanding nomenclature and avoiding common pitfalls.
ISO Code | Shape Description | Point Angle | Primary Application |
|---|---|---|---|
C | Rhombic | 80 Degrees | General turning, facing, roughing |

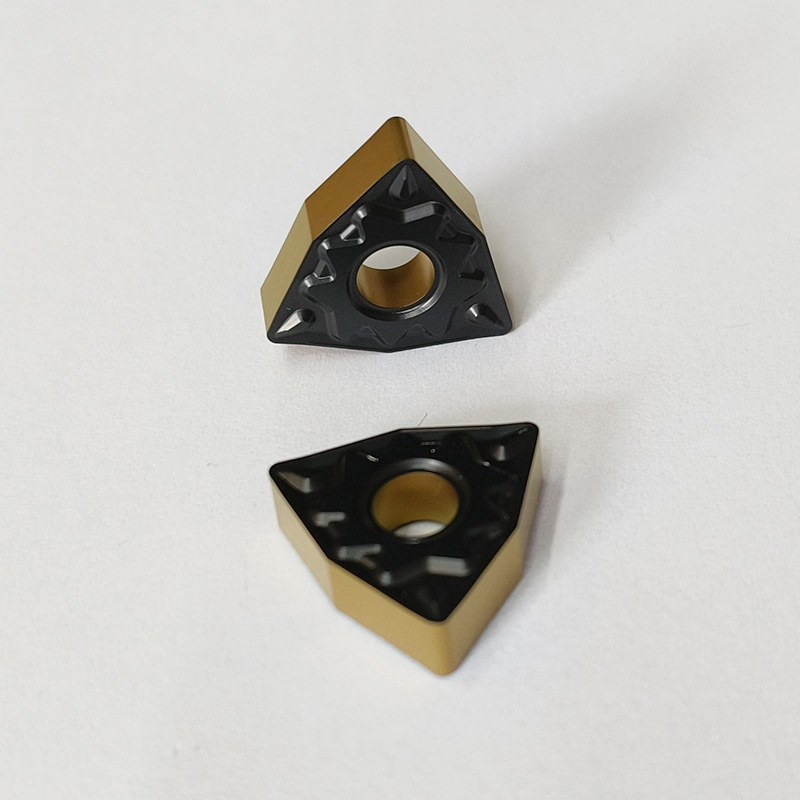

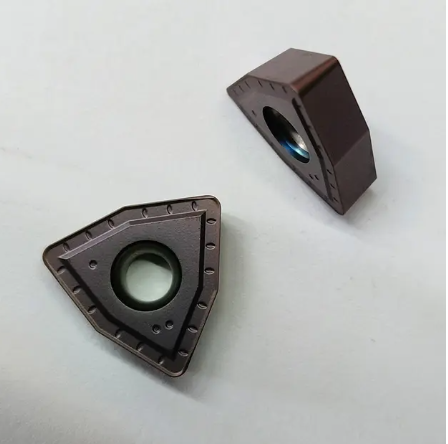

W | Trigon | 80 Degrees | Heavy roughing, interrupted cuts |
D | Rhombic | 55 Degrees | Copy turning, profiling |
V | Rhombic | 35 Degrees | Complex contours, deep undercuts |
We advise buyers to use the standard ISO code to benchmark equivalent inserts. A code like CNMG120408 identifies the shape, clearance, tolerance, and size. This standard allows you to compare inserts across different manufacturers. By matching the ISO code, you isolate proprietary grades as the true differentiator. You can then evaluate which manufacturer offers the best coating technology.
Machinists face several risks during tool implementation.
Over-specifying: We issue a strict warning against paying premium prices unnecessarily. You do not need expensive aerospace-grade coatings when turning mild steel. Over-specifying inflates your budget without improving cycle times.
Vibration issues: Selecting an insert with too large of a nose radius causes major problems. A large radius increases radial pressure. This pressure will induce severe chatter on long, thin parts.
You should never buy bulk tooling blindly. We recommend requesting a tooling sample for a side-by-side run-off. You must test the CNC turning insert in your actual machine. Define the specific data to track during the trial. You should monitor parts per edge, average spindle load, and final surface roughness.
We must reiterate that selecting the right insert is a systematic elimination of variables. You move sequentially from Material, to Shape, to Grade, and finally to the Chipbreaker. You evaluate your machine rigidity and operational goals at every step. This logical progression removes the guesswork from machining processes.
We offer a final credibility check for manufacturing engineers. Even the most expensive, highly engineered insert will fail quickly. It fails if you apply it outside its intended operating window. It also fails completely on a poorly rigged or unstable machine setup. Rigidity and proper application matter more than premium brand names.
We encourage you to consult with a dedicated applications engineer. You can also use an interactive tooling selector to cross-reference your specific CAD/CAM parameters. Validate your choices carefully before scaling up your production. Ready to optimize your process? Explore a reliable Turning Insert to start cutting faster and smarter today.
A: Negative inserts sit flat and have a 90-degree edge. They are double-sided, offering more cutting edges for better economy. They provide stronger edges for heavy roughing but require rigid setups. Positive inserts feature an angled clearance. They are single-sided and sharper. They reduce cutting forces, making them ideal for slender parts and low-horsepower machines.
A: A larger nose radius provides stronger cutting edges. It also delivers better surface finishes at higher feed rates. However, a large radius increases radial cutting forces, raising the risk of chatter. Choose a smaller radius for long, slender parts or internal boring to minimize vibration.
A: Premature chipping usually stems from choosing a grade that lacks toughness. Unstable setups or severe chatter will also fracture the carbide edge. Furthermore, running interrupted cuts without reducing your feed rate causes impact fractures. Finally, inconsistent coolant application creates thermal shock, leading to rapid insert failure.
A: Using one insert requires a significant compromise. Manufacturers design medium-machining chipbreakers for versatility. However, optimal tool life and flawless surface finishes require dedicated geometries. Roughing requires edge strength and large chipbreaker grooves. Finishing requires extreme sharpness and tight chipbreakers to curl thin material properly.
