The world of machining and manufacturing is vast and complex, with numerous components playing critical roles in the creation of precision parts. Among these components, the Turning Insert stands out as a pivotal tool in CNC lathes. These inserts are essential for cutting, shaping, and finishing materials with high precision and efficiency. For those interested in the intricacies of CNC machining, understanding the role and functionality of turning inserts is crucial. This guide will delve into the various aspects of turning inserts, including their types, applications, and the factors influencing their selection. For more information on turning inserts, visit the Turning Insert section on our website.
Turning inserts are small, replaceable cutting tools used in CNC lathes to remove material from a workpiece. They are designed to withstand high temperatures and pressures, making them ideal for heavy-duty machining tasks. The inserts are typically made from materials like carbide, ceramics, or cermet, each offering unique properties that cater to specific machining needs. The choice of material depends on factors such as the type of material being machined, the desired surface finish, and the machining speed.

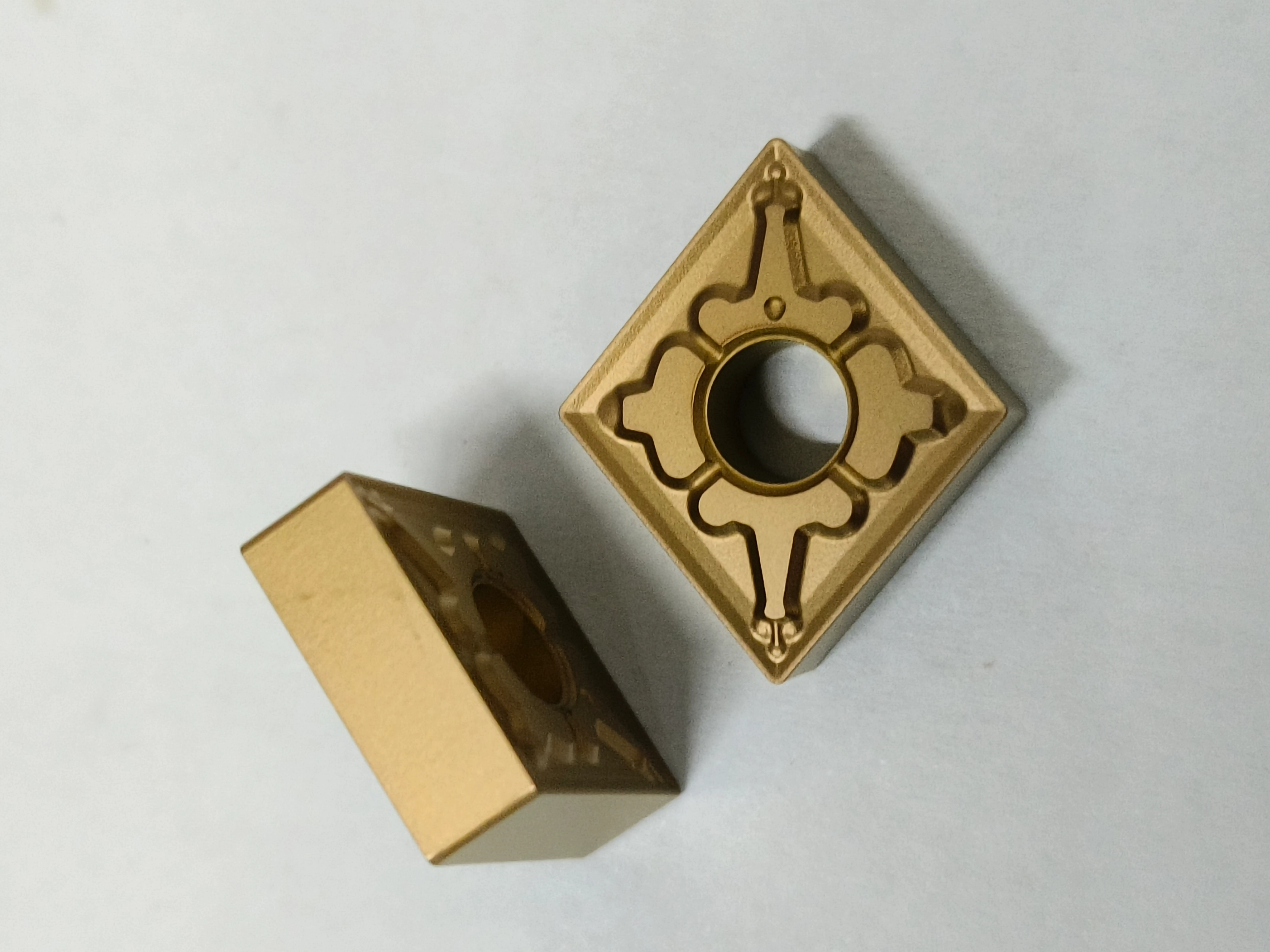

Turning inserts come in various shapes and sizes, each designed for specific applications. The most common shapes include square, triangular, and diamond. Each shape offers distinct advantages in terms of cutting angles and chip evacuation. For instance, triangular inserts are often used for roughing operations due to their strength and stability, while diamond-shaped inserts are preferred for finishing tasks because of their ability to produce fine surface finishes.
Turning inserts are used in a wide range of industries, from automotive to aerospace, where precision and efficiency are paramount. In the automotive industry, they are used to manufacture engine components, transmission parts, and other critical components. In the aerospace sector, turning inserts are essential for producing turbine blades, landing gear components, and structural parts. The versatility of turning inserts makes them indispensable in any industry that requires precision machining.
Selecting the right turning insert is crucial for achieving optimal machining performance. Several factors influence this decision, including the material of the workpiece, the desired surface finish, and the machining conditions. For example, when machining hard materials like stainless steel or titanium, inserts made from carbide or ceramics are preferred due to their hardness and wear resistance. Additionally, the geometry of the insert, such as its rake angle and clearance angle, plays a significant role in determining the quality of the cut and the tool's lifespan.
The material of the workpiece is a primary consideration when selecting a turning insert. Different materials require different cutting speeds, feed rates, and tool geometries. For instance, softer materials like aluminum can be machined at higher speeds with inserts that have a positive rake angle, while harder materials like cast iron require inserts with a negative rake angle to withstand the cutting forces.
The desired surface finish of the machined part is another critical factor. Inserts with a sharp cutting edge and a fine nose radius are ideal for achieving smooth surface finishes. Conversely, inserts with a larger nose radius are better suited for roughing operations where surface finish is less critical.
The machining conditions, including the speed, feed rate, and depth of cut, also influence the choice of turning insert. High-speed machining requires inserts that can withstand high temperatures and maintain their cutting edge. Similarly, heavy-duty machining operations require inserts with high toughness and wear resistance to handle the increased cutting forces.
High-precision turning inserts are designed for applications that demand tight tolerances and superior surface finishes. These inserts are often used in industries where precision is critical, such as aerospace and medical device manufacturing. They are typically made from high-quality materials and feature advanced geometries that minimize tool deflection and vibration.
Heavy-duty turning inserts, on the other hand, are built to withstand the rigors of high-speed and high-feed machining operations. They are commonly used in the automotive and heavy machinery industries, where large volumes of material need to be removed quickly and efficiently. These inserts are characterized by their robust construction and ability to maintain their cutting edge under extreme conditions.
The durability and longevity of a turning insert are crucial factors that impact its cost-effectiveness and performance. Durable turning inserts are designed to withstand the wear and tear of continuous machining operations, reducing the need for frequent replacements. The longevity of an insert is influenced by its material composition, coating, and geometry. For instance, inserts with a wear-resistant coating, such as titanium nitride or aluminum oxide, tend to have a longer lifespan compared to uncoated inserts.
The material composition of a turning insert plays a significant role in its durability. Inserts made from carbide or ceramics are known for their hardness and wear resistance, making them ideal for machining hard materials. Cermet inserts, which combine ceramic and metallic materials, offer a balance of toughness and wear resistance, making them suitable for a wide range of applications.
Coatings are applied to turning inserts to enhance their performance and extend their lifespan. Common coatings include titanium nitride, aluminum oxide, and diamond-like carbon. These coatings provide a protective layer that reduces friction, improves heat resistance, and prevents wear. The choice of coating depends on the machining conditions and the material of the workpiece.
The geometry of a turning insert, including its rake angle, clearance angle, and nose radius, affects its cutting performance and durability. Inserts with a positive rake angle are designed for high-speed machining and offer reduced cutting forces, while those with a negative rake angle are better suited for heavy-duty operations. The nose radius of an insert also influences the surface finish and tool life, with larger radii providing greater strength and stability.
In conclusion, turning inserts are indispensable tools in the world of CNC machining, offering precision, efficiency, and versatility across various industries. Understanding the different types of turning inserts, their applications, and the factors influencing their selection is crucial for optimizing machining performance. By choosing the right insert for the job, manufacturers can achieve superior surface finishes, reduce tool wear, and increase productivity. For more insights into turning inserts and their applications, visit the products page on our website.
1. What are turning inserts used for?
Turning inserts are used in CNC lathes to cut, shape, and finish materials with high precision and efficiency. They are essential for removing material from a workpiece and achieving the desired surface finish.
2. What materials are turning inserts made from?
Turning inserts are typically made from materials like carbide, ceramics, or cermet. Each material offers unique properties that cater to specific machining needs, such as hardness, wear resistance, and toughness.
3. How do I choose the right turning insert?
Choosing the right turning insert depends on factors such as the material of the workpiece, the desired surface finish, and the machining conditions. Consider the insert's material composition, coating, and geometry when making your selection.
4. What are high-precision turning inserts?
High-precision turning inserts are designed for applications that demand tight tolerances and superior surface finishes. They are often used in industries where precision is critical, such as aerospace and medical device manufacturing.
5. What are heavy-duty turning inserts?
Heavy-duty turning inserts are built to withstand high-speed and high-feed machining operations. They are commonly used in the automotive and heavy machinery industries for removing large volumes of material quickly and efficiently.
6. How do coatings affect the performance of turning inserts?
Coatings enhance the performance and lifespan of turning inserts by providing a protective layer that reduces friction, improves heat resistance, and prevents wear. Common coatings include titanium nitride, aluminum oxide, and diamond-like carbon.
7. What factors influence the durability of turning inserts?
The durability of turning inserts is influenced by their material composition, coating, and geometry. Inserts made from carbide or ceramics, with wear-resistant coatings and optimized geometries, tend to have a longer lifespan and better performance.
