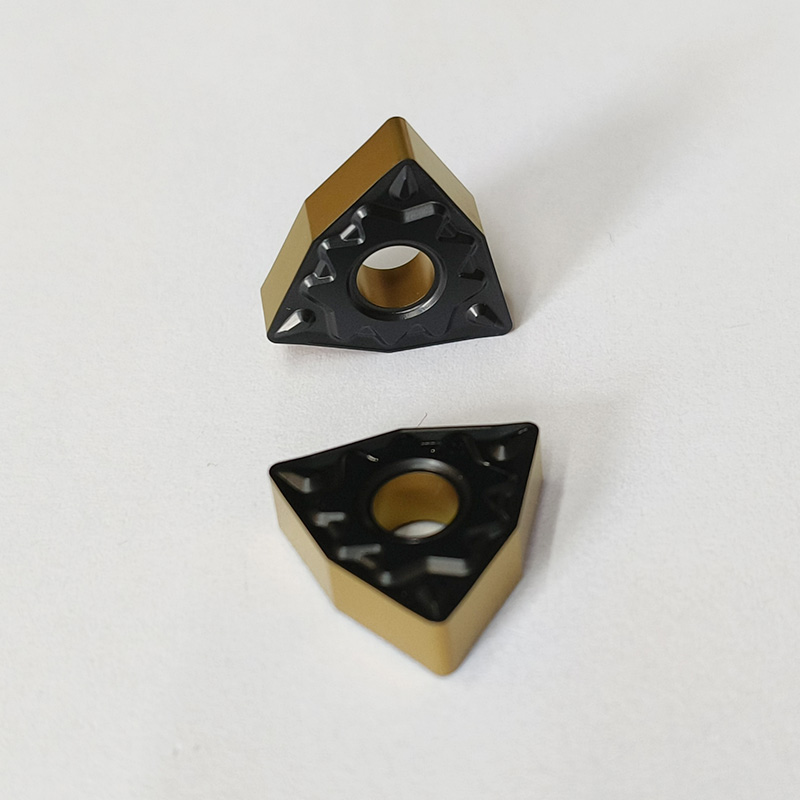

What Should You Check Before Using a Turning Insert in Production

Deploying unverified tooling in a CNC production environment introduces massive financial risk to your shop floor. A single unexpected failure can instantly lead to scrapped aerospace components, unpredictable machine downtime, and permanently damaged toolholders. Running a high-volume job requires a critical mindset shift for every programmer and operator. You must move away from simply ensuring "it cuts" to guaranteeing "it cuts predictably" every single time. Moving any cutting tool from initial testing phases to full-scale production requires a strict, evidence-based evaluation framework. We will explore how validating material compatibility, ISO specifications, chip control, and expected tool life establishes absolute reliability. This comprehensive verification process creates the foundational stability needed for scalable, highly profitable machining operations without unexpected interruptions.

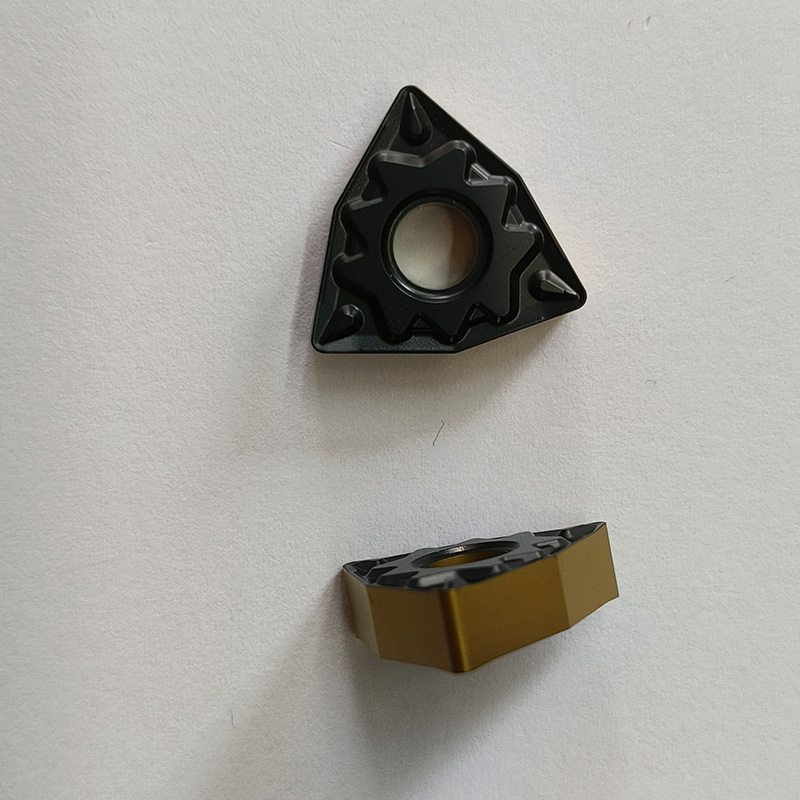

Key Takeaways

• Verify Material Grade: Ensure the carbide substrate and coating strictly align with the target material’s ISO classification (e.g., ISO P for steel).

• Match Geometry to Application: Confirm the insert shape, clearance angle, and chipbreaker are optimized for the specific depth of cut (DOC) and feed rate.

• Inspect Toolholder Fit: A turning insert is only as rigid as its pocket; always check clamping mechanisms and seating before the first cycle.

• Establish Tool Life Baselines: Prioritize predictable wear patterns (like uniform flank wear) over aggressive but volatile cutting parameters to safeguard lights-out production.

1. Evaluate Substrate and Coating Compatibility for Your Material

Choosing the wrong grade ruins production schedules instantly. It forces premature tool failure during critical operations. It drives up your cost-per-part significantly. You must match your tooling exactly to the workpiece material. This prevents sudden edge fracturing during long, unattended cycles. Material compatibility is the absolute foundation of reliable machining.

Identify the exact workpiece material first. You should cross-reference it against standard ISO classifications. The machining industry categorizes materials into six primary groups. We classify them as P, M, K, N, S, and H. You must select the correct carbide turning insert grade based strictly on these categories. Guessing the material group leads to catastrophic failure.

Engineers rely on two main coating technologies today. Each technology serves a vastly different production purpose:

• CVD (Chemical Vapor Deposition): These coatings offer exceptional thickness and thermal resistance. You should use them for high-speed roughing of heavy materials. They handle immense heat perfectly.

• PVD (Physical Vapor Deposition): These coatings provide thinner, much smoother outer layers. They preserve edge sharpness perfectly. You will want them for finishing passes or gummy materials.

When evaluating a turning insert for steel (ISO P group), focus heavily on crater wear resistance. Heat deformation ruins tolerances during continuous cutting conditions. Your chosen grade must withstand sustained, intense thermal loads. You should verify the substrate toughness immediately. This matters greatly if your steel forging has heavy outer scale or interrupted cuts.

Table: ISO Material Groups and Coating Recommendations

2. Verify ISO Nomenclature and Holder Rigidity

A mismatch between the component and the toolholder causes immediate problems. It creates dangerous micro-vibrations throughout the entire spindle assembly. These vibrations lead directly to severe chatter and poor surface finishes. They will eventually cause complete edge chipping. Rigidity is non-negotiable in modern manufacturing.

You must cross-reference the 10-position ISO identification code carefully. This standard code ensures exact dimensional alignment between all mating components. It dictates the overall shape, internal clearance, manufacturing tolerance, and physical size. A CNMG style will never seat correctly inside a DNMG pocket. You must verify every single letter in the nomenclature before installation.

Always inspect the toolholder pocket before inserting new tooling. Look closely for localized wear, minor deformation, or packed chip build-up. Previous production runs often leave stubborn metallic debris behind. A perfectly clean pocket guarantees rigid, unyielding clamping pressure. Use compressed air and a brass brush to clean the seating area thoroughly.

Verify the specific clamping system you plan to use on the machine. Typical retention systems include simple lever locks, Torx screws, or heavy top clamps. Ensure your operators always use a calibrated torque wrench. They must secure the item to the manufacturer's exact specifications every time.

Overtightening severely stresses the delicate carbide substrate internally. Undertightening allows dangerous micro-movements during the heavy cutting phase. Both mistakes destroy predictability and ruin otherwise good parts. We strongly recommend replacing clamping screws periodically. Metal thread fatigue happens much faster than most machinists expect.

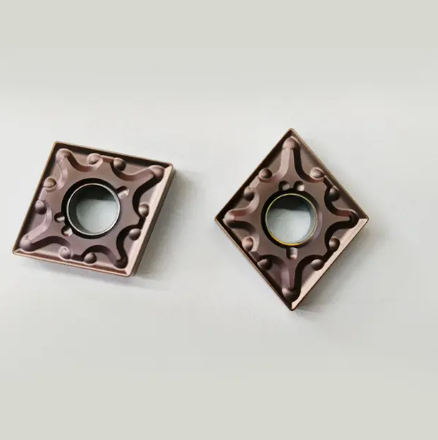

3. Assess Chip Control and Chipbreaker Performance

In high-production environments, poor chip control completely halts automated workflows. Long, stringy chips wrap violently around the spinning chuck. They tangle tightly around the delicate finished part. This dangerous situation requires immediate manual intervention from busy operators. Automation relies entirely on flawless chip evacuation.

You must evaluate chipbreaker geometry thoroughly before full production begins. Map the chosen geometry against your planned cutting parameters precisely. Compare it directly to your intended Feed Rate (fn) and Depth of Cut (ap). Tooling manufacturers provide specific working charts for this exact purpose. Never operate outside the recommended chipbreaker zone.

Different machining operations demand completely specific physical traits from the tool. Consider these fundamental differences:

• Roughing Operations: They require a remarkably strong edge and a much wider chipbreaker. The tool must absorb heavy shock loads safely.

• Finishing Passes: They require a totally different approach altogether. They need a very sharp edge and a tight chipbreaker geometry to curl thin materials.

• Medium Turning: This requires a balanced geometry. It must handle moderate depths while maintaining excellent surface finish quality.

Run a short, highly monitored test cycle first. This lets you visually inspect the actual chip formation safely. You are looking for tightly coiled, easily manageable chips. They should resemble a "6" or a "9" in their physical shape. These specific shapes evacuate easily from the dense cutting zone.

Adjust your feed rates immediately if chips emerge continuous and unbroken. Do the same if they appear over-compressed and heavily fractured. Proper chip evacuation protects the workpiece surface finish perfectly. It also prevents catastrophic physical damage to the internal conveyor systems.

4. Define Predictable Tool Life and Failure Modes

Predictable tool life is your most valuable production metric. In high-volume decision-making, consistency beats absolute maximum tool life every time. You want physical safety and absolute reliability across multiple operating shifts. We value a predictable 40-minute lifespan over an unpredictable 60-minute one. Predictability allows for safe, lights-out manufacturing.

Establish a clear baseline cutting speed (Vc) first. Base this initial number strictly on published manufacturer data. Then, you must adjust it for your specific machine's structural rigidity. You must also account for your exact coolant delivery pressure. Older machines usually require slightly more conservative baseline cutting speeds.

Identify the clear difference between acceptable and unacceptable edge wear. Uniform flank wear is always the ultimate goal here. It shows a highly stable, controlled breakdown of the active cutting edge. This predictable wear pattern allows you to plan automated tool changes accurately.

Conversely, watch out for severe thermal cracking or built-up edge (BUE). Catastrophic fracture clearly indicates deeply flawed parameter selection. If you see deep crater wear forming too fast, reduce your surface speed immediately. Rapid notch wear means you should change your depth of cut.

Choose a CNC turning insert that yields highly consistent run times consistently. Find one that lasts exactly 45 minutes in the heavy cut. This consistency allows programmers to confidently set automated tool life limits. Your CNC machine can then swap tools safely without human supervision.

5. The Pre-Cycle Physical Inspection Checklist

The final physical checks are absolutely mandatory for success. You must complete them before hitting "cycle start" on a massive batch. Skipping these basic checks invites immediate and costly manufacturing disasters. We use a strict pre-cycle inspection checklist for this exact reason. It eliminates human error entirely.

First, perform a visual inspection under strong lighting and magnification. Check for micro-chipping on the primary cutting edge. Look for tiny coating defects or abnormal surface discoloration. Do this even on brand-new items straight from the manufacturer's box. Shipping damage occasionally happens to the best industrial tooling.

Second, verify your exact center height meticulously. Ensure the active cutting edge rests perfectly on the spindle center line. This alignment is intensely critical for all facing operations. It is equally important when turning very small internal diameters. Being off-center alters the effective clearance angle completely.

Third, check your specific coolant nozzle alignment carefully. Verify that high-pressure lines aim directly at the active cutting zone. The toolholder body should never deflect the vital fluid stream. Proper coolant delivery blasts hot chips away and prevents rapid thermal shock.

Follow this standardized physical checklist before every setup:

1. Clean the seating pocket thoroughly using compressed air.

2. Inspect the underlying carbide shim for deformation.

3. Torque the clamping screw correctly using a calibrated wrench.

4. Verify the cutting edge condition under magnification.

5. Confirm the center height alignment using a dial indicator.

6. Test the coolant stream trajectory manually.

Every time you install a new turning insert, follow these exact steps without exception. Discipline in the setup phase guarantees success in the production phase.

Conclusion

Transitioning a Turning Insert into full production demands rigorous, evidence-based verification. You must meticulously check the material grade, physical geometry, clamping rigidity, and wear predictability. Standardize your internal selection process immediately to prevent costly floor errors. Document successful parameter combinations for every single production job you run. Record specific wear characteristics to build a highly reliable internal knowledge base. This recorded data prevents future guesswork and speeds up complex setup times significantly. Relying on documented evidence ensures a safer, much more profitable shop floor environment.

FAQ

Q: How do I visually identify if a carbide turning insert is seated incorrectly?

A: Look for a visible gap between the base and the underlying shim. Check if the top sits slightly above the steel pocket walls. An unseated tool will immediately vibrate loudly upon contact. It may also snap entirely upon engaging the raw material. Always clean the pocket thoroughly and use a torque wrench to prevent this issue.

Q: What are the auditory signs of premature insert wear?

A: A high-pitched squeal often indicates a severe built-up edge (BUE). It can also mean extreme rubbing due to a complete loss of clearance. A deep, heavy grinding sound suggests severe flank wear. This specific grinding noise warns of an impending catastrophic failure. You should stop the spindle immediately upon hearing these sounds.

Q: Why is my turning insert for steel failing when cutting stainless steel?

A: Carbon steel and stainless steel require entirely different geometries and coatings. Stainless steel work-hardens quickly and generates immense localized heat at the cutting edge. It typically requires a much sharper edge and a slick PVD coating. You also need a specific chipbreaker to prevent built-up edge and rapid thermal degradation.

Q: How often should I replace the toolholder shim or screw?

A: You should replace clamping screws every 10 to 15 tool changes. This prevents sudden thread fatigue and dangerous loosening during heavy cuts. You must inspect shims during every single change. Replace them immediately if you see any obvious signs of indentation, severe wear, or deformation from previous heavy cuts.
