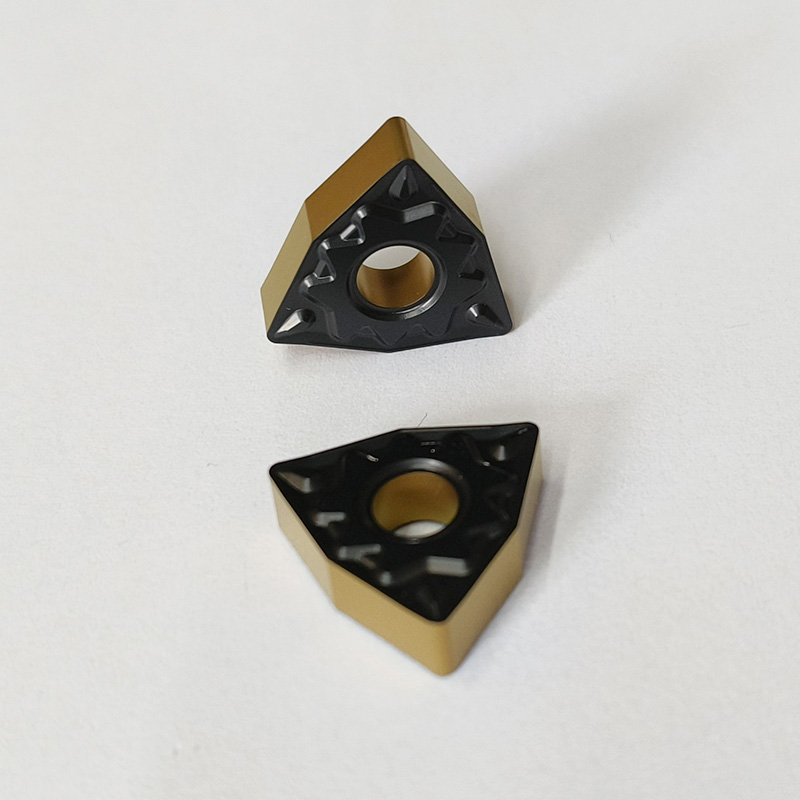

Premature tool failure and inconsistent surface finishes destroy profit margins in production machining. The root cause is rarely a defective cutting tool. Instead, this problem usually stems from a direct mismatch between your chosen tool and the operational environment. Choosing the correct tool ensures you balance predictable tool life, optimal cycle times, and robust process security. You cannot rely on mere guesswork. This article breaks down the exact physical and operational conditions dictating your tooling selection. We move beyond basic manufacturer catalogs to explore real-world application trade-offs. You will learn how to evaluate machine rigidity, assess workpiece material constraints, and balance cutting parameters effectively. By understanding these dynamic machining variables, you can confidently match geometries and grades to your specific setup. We will guide you through this complex process step-by-step.
Machine rigidity and part setup dictate the baseline toughness required from any insert grade.
Workpiece material categorization (ISO groups) determines the necessary coating and edge preparation.
Depth of cut (DoC) and feed rate are the primary drivers for selecting chipbreaker geometry.
Coolant strategy (or lack thereof) drastically alters the risk of thermal cracking, especially in interrupted cuts.
A rigid setup allows for harder, more wear-resistant inserts. Conversely, a less stable setup demands extreme toughness to prevent catastrophic tool failure. You must assess your entire machining environment before selecting a tool grade. The spindle condition and the overall machine age play massive roles. Older machines frequently suffer from noticeable spindle runout. Worn machine ways also introduce continuous micro-vibrations into the cutting zone. These tiny vibrations act exactly like microscopic interrupted cuts. They necessitate a tougher tool grade to absorb the continuous mechanical shock safely.
Workholding methods and part overhangs also heavily influence your choices. Long workpiece overhangs unsupported by a tailstock inevitably induce severe chatter. You face similar chatter risks when machining thin-walled cylindrical parts. When rigidity drops, you must adapt your tooling strategy immediately. Prioritizing a tougher carbide substrate reduces cutting forces safely. You should also select a highly positive cutting geometry. This specific combination minimizes part deflection and extends tool survival.
Always measure spindle runout using a dial indicator before starting high-precision jobs. Keep your workpiece clamped as close to the chuck jaws as physically possible. If overhang exceeds three times the part diameter, you must utilize a tailstock. Selecting tools featuring smaller nose radii also helps reduce radial cutting pressure during unstable setups.
Setup Condition | Vibration Level | Recommended Grade Property | Primary Geometry Choice |
|---|---|---|---|
New Machine, Short Overhang | Negligible | High Hardness (Wear Resistant) | Negative Rake, Strong Edge |
Older Machine, Moderate Overhang | Low to Moderate | Balanced Hardness and Toughness | Neutral to Positive Rake |
Worn Spindle, Long Overhang | Severe (Chatter Prone) | Maximum Toughness (Shock Resistant) | Highly Positive Rake, Sharp Edge |

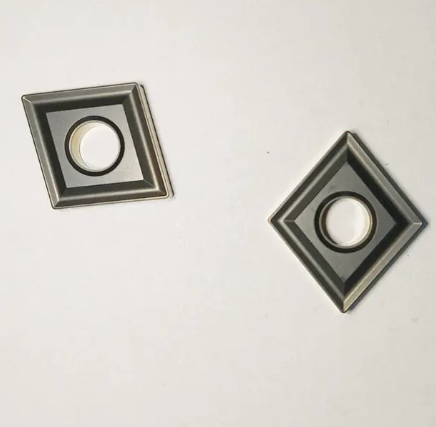

Material hardness requires immense deformation resistance from your chosen tool. Abrasiveness requires high wear resistance instead. You frequently encounter extreme abrasiveness in cast iron or high-silicon aluminum alloys. Selecting a turning insert for steel demands strict attention to these properties. You must focus intensely on securing high crater wear resistance. Coated carbide is typically required for continuous cutting applications. It excels particularly well in carbon and standard alloy steels. Proper coatings protect the substrate from chemical dissolution at extreme temperatures.
Stainless steels (ISO M) and superalloys (ISO S) present entirely different challenges. These unique materials work-harden rapidly during the cutting process. They also generate immense heat at the shear zone. Machining them requires extremely sharp edge preparations. You also need positive rake angles to shear the gummy material cleanly. Excellent coating adhesion prevents Built-Up Edge (BUE) formation effectively. BUE occurs when workpiece material welds directly to the cutting edge. It eventually tears away, taking microscopic pieces of the tool along.
Using a general-purpose grade across all materials introduces massive process risk. This lazy practice leads directly to highly unpredictable tool life. Specific ISO matching remains strictly mandatory for high-volume process reliability. Do not attempt machining Inconel utilizing an insert designed for low-carbon steel. The tool will fail catastrophically within minutes. You must select a dedicated turning insert engineered specifically for your target ISO material group.
Cutting speed dictates the total heat generated at the cutting zone. High speeds require highly heat-resistant tool substrates. You typically need a thicker CVD coated carbide turning insert for these aggressive conditions. CVD coatings provide superior thermal barriers. Feed rate directly impacts the final surface finish and overall chip formation. It strongly dictates your required nose radius selection. Higher feeds require larger nose radii to maintain finish quality. However, a larger radius increases radial cutting pressure significantly. You must balance this pressure against your machine rigidity.
You must match the depth of cut directly to the insert’s chipbreaker geometry. The chipbreaker manages the flow and breakage of the metal chip. Applying the wrong geometry leads to long, stringy chips tangling around the chuck.
Roughing Operations: High depth of cut requires a structurally strong edge. You need an open chipbreaker to evacuate large chips safely. Roughing prioritizes maximum material removal rates over surface finish quality.
Finishing Operations: Low depth of cut requires a meticulously sharp edge. You need a tight chipbreaker to curl and break very thin chips effectively. Finishing prioritizes tight dimensional tolerances and superior surface finishes.
Process Separation: Combining roughing and finishing on one tool usually compromises both processes. The strong edge needed for roughing pushes off the part during fine finishing passes.
Continuous cutting generates steady, predictable heat loads on the tool. Interrupted cutting introduces extreme mechanical and thermal shock. Machining splines, hex stock, or cast voids severely punishes the tool edge. You must understand thermal shock risks clearly. Applying coolant inconsistently during interrupted cuts destroys tools rapidly. The cutting edge heats up intensely inside the cut. It then cools down instantly as it exits the material and hits the coolant stream. This extreme fluctuation leads directly to thermal cracking and edge chipping. These microscopic cracks grow until the edge completely fractures.
Dry machining offers distinct advantages in specific scenarios. When roughing steel or milling utilizing turning tools, running dry is often safer. It protects the Turning Insert from severe thermal fatigue. You simply need a tool coating designed for high-heat environments. Modern alumina coatings excel in dry cutting operations. They push generated heat into the metal chip instead of the tool substrate. The hot chip carries the damaging heat away from your setup naturally.
You need a systematic approach to tool selection for optimal results. Guessing leads to scrapped parts and broken tooling. Follow this exact framework to narrow down your tooling choices effectively.
Step 1: Define the Constraint. Identify your limiting factor immediately. This constraint might be machine horsepower, poor part rigidity, or strict cycle time targets. Knowing your absolute limit narrows your options quickly.
Step 2: Match Geometry to Application. Select your insert shape based on part accessibility and profiling needs. For example, choose a robust CNMG shape for heavy roughing. Choose a slender VNMG shape for intricate profiling. Select your chipbreaker based on your intended depth of cut and feed rate.
Step 3: Match Grade to Material and Setup. For high rigidity and continuous cuts, pick a harder grade. Prioritize intense wear resistance. For low rigidity or interrupted cuts, pick a tougher grade. Prioritize superior edge strength.
Step 4: Vendor Evaluation. Look for tool manufacturers providing highly transparent cutting data. They should offer reliable technical support. Avoid vendors promising universal performance across all metals. Select a dedicated CNC turning insert designed specifically for your exact operational challenge.
Turning insert selection remains an ongoing exercise in managing technical trade-offs. You balance wear resistance against structural toughness continually based on your specific machining conditions. No single tool performs perfectly across all applications. You must evaluate your machine rigidity, workpiece material, and desired cutting parameters cohesively. Understanding the physical dynamics of heat generation and chip formation empowers you to make smarter tooling choices.
Start your optimization journey utilizing the tool manufacturer's middle-ground recommendations for your specific ISO material. Run a highly controlled production test on your shop floor. Analyze the resulting tool wear patterns carefully. Look closely at flank wear versus edge chipping. Use this specific empirical wear data to dial in your final grade and geometry selection perfectly.
A: Rapid crater wear on the top of the insert indicates excessive heat. You might also notice plastic deformation of the cutting edge. Observing a dark blue or discolored chip during steel machining serves as a primary indicator. High speeds generate intense heat exceeding the tool coating limits.
A: Chipping usually indicates the tool grade is too hard for your setup's rigidity. It also happens when your feed rate is too high for the edge preparation. Finally, an unmanaged interrupted cut easily fractures a brittle cutting edge. You likely need a tougher substrate.
A: Rarely. Roughing requires toughness and large chipbreakers for heavy material removal. Finishing demands razor-sharp edges, tighter chipbreakers, and high wear resistance for pristine surface finishes. Combining them usually compromises both processes. You will experience poor chip control and rapid tool wear.
A: Yes. A larger nose radius spreads cutting forces over a wider area. This increases edge strength and allows for higher feed rates. However, it also increases radial cutting pressure. High radial pressure frequently causes chatter in non-rigid setups, destroying the tool edge prematurely.
